Zhengzhou Huitong Pipeline Equipment Co.,Ltd.
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 10000000000pcs/month |
| Delivery Time | 5~50days |
| Packaging Details | plywood case,pallet,woven bag,carton,etc. as per your requirements. |
| Material | Alloy Steel |

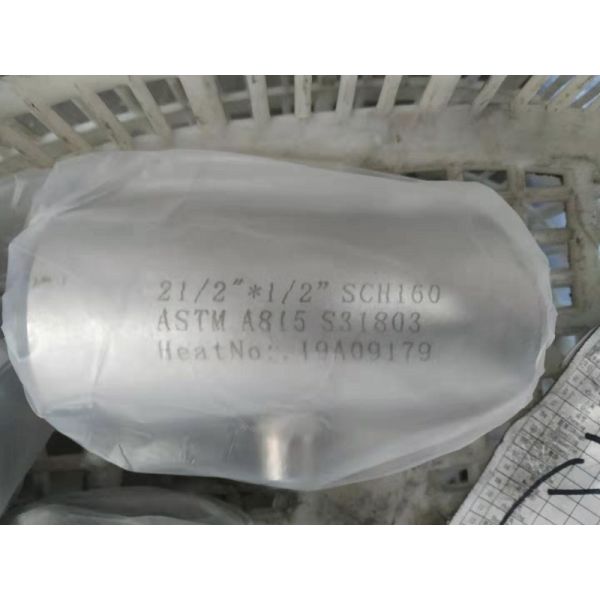

| Product Name | ASTM A815 S31803 REDUCING TEE BW SMLS ASME B16.9 2 1/2"*1/2" SCH160 |
| Standard | ASTM A815 S31803 |
| Size | Seamless : 1/2″ – 10″, Welded : 1/2″ – 48″ |
| Type | Seamless / Welded / Fabricated |
| Application | oil gas chemical |
| Brand Name | HT |
| Model Number | ASTM A815 S31803 REDUCING TEE BW SMLS ASME B16.9 2 1/2"*1/2" SCH160 |
| Certification | ISO TUV BV SGS,etc. |
| Place of Origin | China |
View Detail Information
Explore similar products
Forged ASME B16.5 WN SO BL Duplex Stainless Steel Flange S31803 S32205
Duplex Steel 904L N08904 1.4539 WN SO SW BL Flange
300# 600# 900# 1500# Duplex Stainless Steel Flanges ASME SA182 317L ASME B16.5
ASTM A182 F51 ASME B16.5 RF Raised Face Weld Neck Flange 400#600#900# 26"-36" WN
Product Specification
| Payment Terms | L/C, D/A, D/P, T/T, Western Union | Supply Ability | 10000000000pcs/month |
| Delivery Time | 5~50days | Packaging Details | plywood case,pallet,woven bag,carton,etc. as per your requirements. |
| Material | Alloy Steel | Product Name | ASTM A815 S31803 REDUCING TEE BW SMLS ASME B16.9 2 1/2"*1/2" SCH160 |
| Standard | ASTM A815 S31803 | Size | Seamless : 1/2″ – 10″, Welded : 1/2″ – 48″ |
| Type | Seamless / Welded / Fabricated | Application | oil gas chemical |
| Brand Name | HT | Model Number | ASTM A815 S31803 REDUCING TEE BW SMLS ASME B16.9 2 1/2"*1/2" SCH160 |
| Certification | ISO TUV BV SGS,etc. | Place of Origin | China |
1. ASTM A815 S31803 REDUCING TEE ORDER INFORMATION
| DESCRIPTION | ASTM A815 S31803 REDUCING TEE BW SMLS ASME B16.9 2 1/2"*1/2" SCH160 |
| QTY(Pcs) | 4 |
| Export Date | 2019/11/5 |
| Export Country | India |
It is standard specification for Wrought Ferritic, Ferritic/Austenitic, and Martensitic Stainless Steel Piping Fitting.
This specification covers two general classes, WP and CR. Class WP fittings are subdivided into four classes:
UNS S31803 has a high content of chromium, making the equal tee has good corrosion resistance. Even in chloride and sulphide environments, it exhibits very high resistance to stress corrosion cracking. But it will causes embrittlement at temperatures over 300°C.
Besides, UNS S31803 Equal TEE has good strength and elongation. And at low temperature, its notch ductility is better than ferritic and martensitic grades. Its working temperature at least is -50°C.
So this kind of stainless steel fittings is ideal for low temperature applications.
Duplex Steel Butt Weld Fittings are typically used in:
| C | Mn | P | S | Si | Ni | Cr | Mo | N |
|---|---|---|---|---|---|---|---|---|
| 0.03 | 2.00 | 0.03 | 0.02 | 1.00 | 4.5-6.5 | 21-23 | 2.5-3.5 | 0.08-0.20 |
| Yield Strength MPa | Tensile Strength MPa | Elongation min % | HB
max |
|---|---|---|---|
| 66/450 | 90/620 | 20.0 | 290 |
As a Butt Weld Equal Tee, the weld-ability is important. ASTM A815 Duplex Steel Equal Tee has good weld-ability.
Though the weld-ability of UNS S31803 Butt Weld Fittings is not as good as Austenite, but its low thermal expansion can reduce the deformation and residual stress after welding.
