Daitto Filtration Group Company
| Payment Terms | T/T, Western Union, |
| Supply Ability | 100000 pcs per month |
| Delivery Time | 25 working days |
| Packaging Details | standard export package |
| Material(Standard) | Cellulose/Polyester/Synthetic |
| Finishing Treatments | -coating,waterproofing,oilproofing,flame-retarding |
| Size | OEM |
| Package | standard export package |
| Sample | free |
| Application | Flour plant, Chemical factory, Wheels manufacturing and so on |
| Brand Name | DAITTO |
| Model Number | Industry Air Filter |
| Certification | ISO |
| Place of Origin | China |
View Detail Information
Explore similar products
Cylindrical Industrial Air Filter Cartridge With Large Filter Media Surface
High Temperature Cellulose Filter Cartridges 1.0mm Thickness 5um Precision
Pulse Clean Industrial Air Filter Superior Dust Loading Capacity EPDM Gasket
Twist Lock Pre Filter Cartridge , Dust Filter Cartridge Anti Static Coating
Product Specification
| Payment Terms | T/T, Western Union, | Supply Ability | 100000 pcs per month |
| Delivery Time | 25 working days | Packaging Details | standard export package |
| Material(Standard) | Cellulose/Polyester/Synthetic | Finishing Treatments | -coating,waterproofing,oilproofing,flame-retarding |
| Size | OEM | Package | standard export package |
| Sample | free | Application | Flour plant, Chemical factory, Wheels manufacturing and so on |
| Brand Name | DAITTO | Model Number | Industry Air Filter |
| Certification | ISO | Place of Origin | China |
| High Light | industrial hepa filter ，air conditioner filters | ||

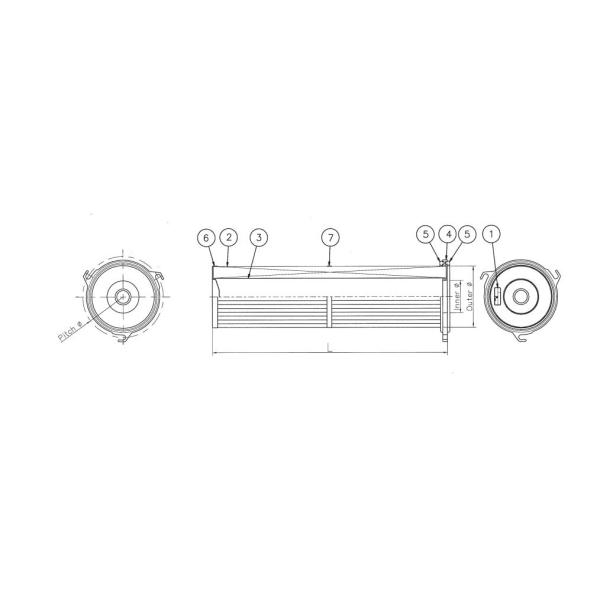

3 Lugs Filter Cartridge
| Model | OD (mm) | H(mm) | ID(mm) | Pitch(mm) | Top flange |
|---|---|---|---|---|---|
| TN10551110F3 | 142 | 300 | 80 | 180 | 3 |
| TN10552310F3 | 142 | 600 | 80 | 180 | 3 |
| TN10553910F3 | 142 | 1000 | 80 | 180 | 3 |
| TN10554710F3 | 142 | 1200 | 80 | 180 | 3 |
| TN10612310F3 | 156 | 600 | 85 | 207 | 3 |
| TN10613910F3 | 156 | 1000 | 85 | 207 | 3 |
| TN10614710F3 | 156 | 1200 | 85 | 207 | 3 |
| TN10852310F4 | 218 | 600 | 144 | 267 | 4 |
| TN10853910F4 | 218 | 1000 | 144 | 267 | 4 |
| TN10854710F4 | 218 | 1200 | 144 | 267 | 4 |
| TN10852310F3 | 218 | 600 | 142 | 267 | 3 |
| TN10853910F3 | 218 | 1000 | 142 | 267 | 3 |
| TN10854710F3 | 218 | 1200 | 142 | 267 | 3 |
| TN11272310F3 | 324 | 600 | 213 | 397 | 3 |
| TN11272510F3 | 324 | 660 | 213 | 397 | 3 |
| TN11273910F3 | 324 | 1000 | 213 | 397 | 3 |
| TN11274710F3 | 324 | 1200 | 213 | 397 | 3 |
Detailed informations(Products):
1. Feature: Filter cartridges with lugs can be installed from either the clean side or the dirty side.They are specially suitable for compact dust filter collectors.
2. Wide application: With plenty of filter media selection of high quality and many finishing treatments available, we can always provide proper filter cartridges for all kinds of operating environments.
Structure:
| Item | Material(Standard) | Material(Alternative) |
|---|---|---|
| Filter Media | Cellulose/Synthetic fiber/ | All kinds of H&V air filtration`s filter |
| Nanofiber/Polyester fiber | media selection | |
| Top cap/ | Galvanized steel | Stainless steel,Color-coated steel, |
| Bottom cap | recyclable plastic ABS | |
| (Open/Closed) | ||
| Gasket | EPDM | Urethane/Silicone |
| Inner Mesh | Galvanized steel | Stainless Steel,Color-coated steel, |
| Recyclable PP | ||
| Outside Straps/ | Optional | Glued or ultrasonic welded straps/ |
| Outer Mesh | Galvanized steel/Stainless Steel | |
| Finishing Treatment | -coating,waterproofing,oilproofing,flame-retarding | |
| treatment, antistatic coating,etc | ||
Application:
Widely used in sandblasting, welding fume, powder coating, and other kinds of
dust collection applications.
Also, we warmly welcome:
-- End users or agents to find replacements here;
-- Dust collector manufacturers to do customization.

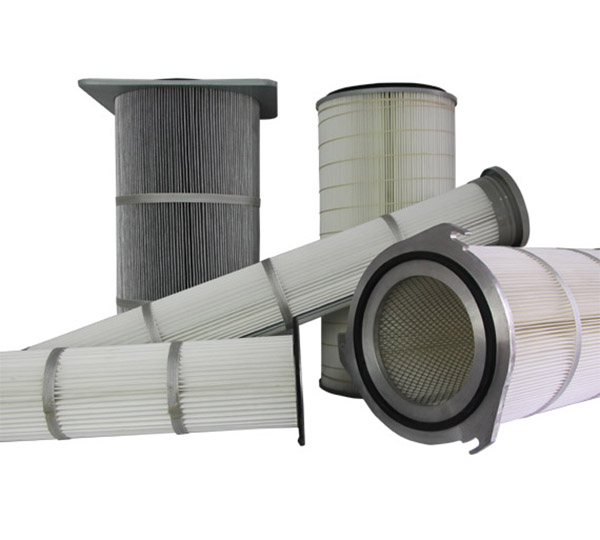

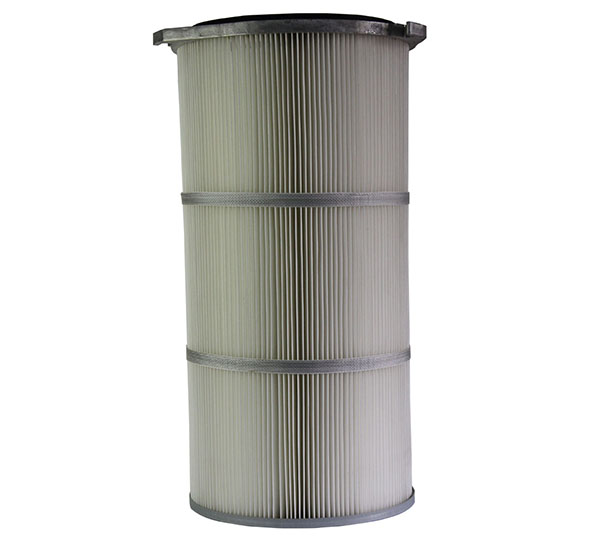

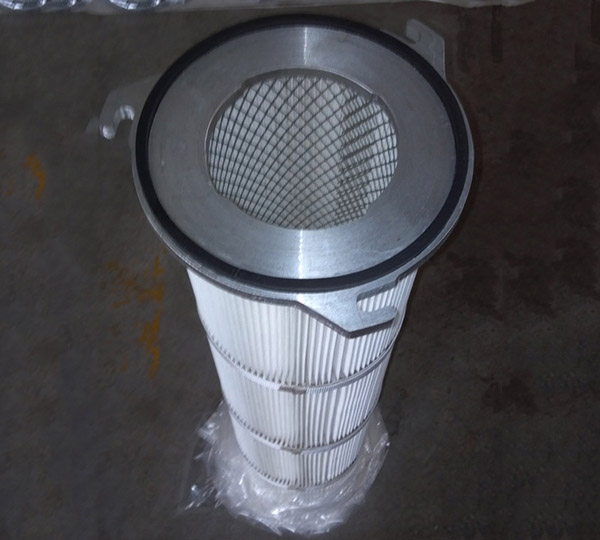

Products Pictures:
