Daitto Filtration Group Company
| Payment Terms | T/T, Western Union, |
| Supply Ability | 100000 pcs per month |
| Delivery Time | 15 working days |
| Packaging Details | standard export package |
| Material(Standard) | Cellulose/Polyester/Synthetic |
| Finishing Treatments | -coating,waterproofing,oilproofing,flame-retarding |
| Size | OEM |
| Package | standard export package |
| Sample | free |
| Application | Flour plant, Chemical factory, Wheels manufacturing and so on |
| Brand Name | DAITTO |
| Model Number | Industry Air Filter |
| Certification | ISO |
| Place of Origin | China |
View Detail Information
Explore similar products
Cylindrical Industrial Air Filter Cartridge With Large Filter Media Surface
High Temperature Cellulose Filter Cartridges 1.0mm Thickness 5um Precision
Pulse Clean Industrial Air Filter Superior Dust Loading Capacity EPDM Gasket
Twist Lock Pre Filter Cartridge , Dust Filter Cartridge Anti Static Coating
Product Specification
| Payment Terms | T/T, Western Union, | Supply Ability | 100000 pcs per month |
| Delivery Time | 15 working days | Packaging Details | standard export package |
| Material(Standard) | Cellulose/Polyester/Synthetic | Finishing Treatments | -coating,waterproofing,oilproofing,flame-retarding |
| Size | OEM | Package | standard export package |
| Sample | free | Application | Flour plant, Chemical factory, Wheels manufacturing and so on |
| Brand Name | DAITTO | Model Number | Industry Air Filter |
| Certification | ISO | Place of Origin | China |
| High Light | industrial hepa filter ，air conditioner filters | ||
High flow Antistatic Air Filter Cartridge
Product Descriptions:
PTFE Filter Cartridge is a membrane-laminated polyester media. This media provides very high initial efficiency on sub-micron particles. With the addition of the film, almost all particles are immediately stopped by the filter (99.9% efficiency). PTFE membrane media provides the best dust cake release properties. PTFE is nearly chemically inert, a desirable property when dealing with reactive products.
Features:
(1) Suitable for the filtration of very fine dust type in welding fumes, mechanical processing,pharmaceutical and construction industries and sticky dust collection.
(2) Imported spun bonded polyester with PTFE membrane, microporou offers 99.99+% filter efficiency.
(3) Wide pleat spacing and smooth,hydrophobic PTFE provides excellent particle release.
(4) Excellent resistance to chemical erosion.
(5) Electrochemical plate/stainless steel top and bottom, no rust perforated zinc galvanized metal inner core allows good airflow.
(6) Applicable temperature: 93-135℃.
Optional Dimensions:
| DIMENSIONS | |||
|---|---|---|---|
| Model | OD(mm) | H(mm) | ID(mm) |
| TN10791600 | 201 | 406 | 92 |
| TN11211500 | 308 | 381 | 195 |
| TN11212300 | 308 | 597 | 196 |
| TN11271800 | 324 | 457 | 213 |
| TN11272500 | 324 | 641 | 213 |
| TN11272600 | 324 | 660 | 222 |
| TN11272601 | 324 | 660 | 406 |
| TN11273900 | 324 | 991 | 213 |
| TN11382200 | 352 | 559 | 241 |
| TN11382300 | 351 | 584 | 241 |
| TN11382500 | 351 | 641 | 241 |
| TN11382600 | 352 | 660 | 249 |
| TN11382700 | 351 | 686 | 241 |
| TN11383000 | 351 | 762 | 241 |
| TN11424000 | 362 | 1016 | 251 |
| TN11502800 | 381 | 711 | 254 |
| TN11602200 | 406 | 559 | 291 |
| TN11602300 | 406 | 597 | 245 |
| TN11631600 | 415 | 422 | 305 |
| TN11632400 | 416 | 610 | 303 |
| TN11751800 | 447 | 457 | 311 |
| TN11752100 | 447 | 533 | 311 |
| TN11802700 | 459 | 699 | 313 |
Drawings:
Structure:
| Item | Material(Standard) | Material(Alternative) |
|---|---|---|
| Filter Media | Cellulose/Polyester/Synthetic | |
| fiber/Nanofiber | filter media at option | |
| Top cap | Galvanized Steel | Stainless Steel |
| Closed bottom | Galvanized Steel | |
| cap | ||
| Gasket | EPDM | Silicone,Urethane |
| Inner Mesh | Galvanized Steel | |
| Outer Mesh | Galvanized Steel | |
| Finishing Treatments | -coating,waterproofing,oilproofing,flame-retarding | |
| treatment, antistatic coating,etc | ||
Application:
Flour plant, Chemical factory, Wheels manufacturing and so on.

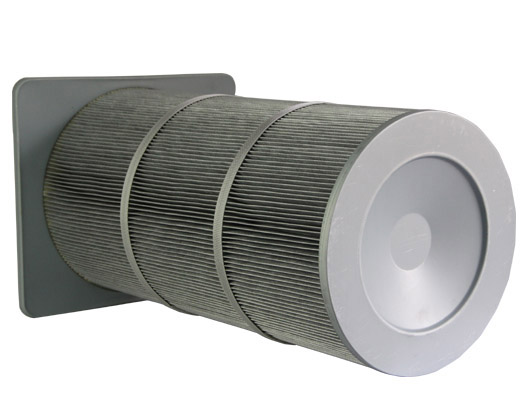

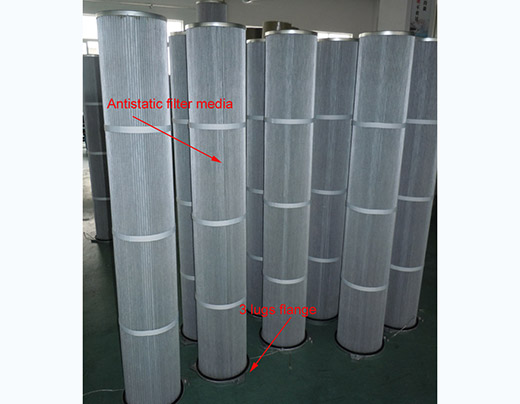

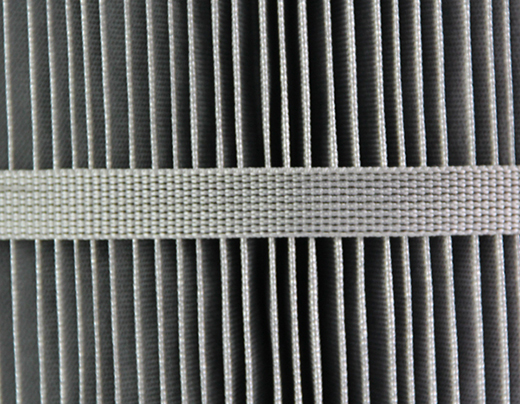

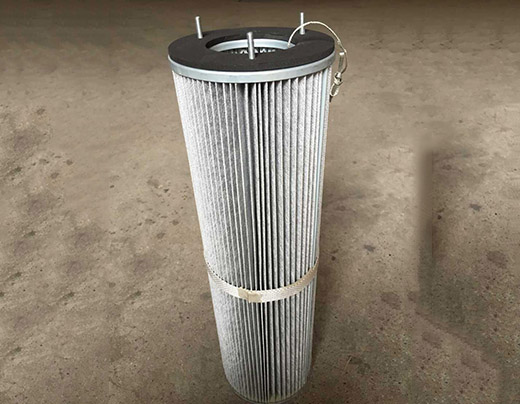

Products Pictures:
