600dpi 1200dpi UV LED Flatbed Inkjet Printer MIMAKI JFX600-2531

Product Specification

High speed and High quality: Max. print speed 200m²/h, 6-color ink
Large format UV-LED Flatbed inkjet printer "JFX600-2531"

MIMAKI JFX600-2531 UV-LED Large flatbed inklet printer

- Responding to demand for printing the extend length of substrates. -

The JFX600-2531 is a large format flatbed UV-LED inkjet printer with 2.4 times larger print area than the JFX600-2513, while maintaining the print engine of the JFX600-2513.
It is capable of direct printing on architectural materials (glass, partitions, and plywood) with a standard size of 3 meters.

1. 3.1 meter maximum print size enables custom printing of standard size 3,000 mm long architectural substrates.
2. Toggle print function added, allowing printing to continue without stopping the print production by dividing the print area into two locations: front and back.
3. Material suction vacuum area is divided into 9 sections, enabling suction according to the media used. No need to fill the gap of suction area when setting material; improving work efficiency.
4. High productivity, 330% compared to the conventional model (Same as the JFX600-2513)
5. 6 colours are supported to achieve high-definition expression (Same as the JFX600-2513)
6. 2.5D printing that expresses unevenness on the surface to add value to the product (Same as the JFX600-2513)
7. The automatic nozzle check function (NCU) and nozzle recovery function (NRS) to reduce downtime due to missing nozzles (Same as the JFX600-2513)

8. JFX600-2531
   Head		On-demand Piezo head 16 printheads (4x4 lines in a staggered layout)
   Print resolution		600, 1,200dpi
   Ink	Type	Flexible UV curable ink : LUS-120 (C, M, Y, K, Lc, Lm, W, Cl) *1
   		Flexible UV curable ink : LUS-150 (C, M, Y, K, Lc, Lm, W) *1
   		Flexible UV curable ink : LUS-211 (C, M, Y, K, W, Cl) *1 *2
   		Hard UV curable ink : LH-100 (C, M, Y, K, Lc, Lm, W, Cl)
   		Primer: PR-200 *3
   	Ink Supply system	Supplied from 1-liter bottles for each color
   	Ink circulation system *4	White ink circulation using Mimaki Circulation Technology (MCT)
   Maximum diagram dimensions (W×D)		2,500×3,100 mm (98.4×122.0")
   Media	Dimensions (W×D)	Up to 2,500×3,100 mm (98.4×122.0")
   	Height	Max. 60 mm
   	Weight	Less than 50 kg/m2 (10.2 lb./ft2), non concentrated load
   Media absorption		Blower adsorption type + foot switch
   Number of absorption area partitions		9 partitions (X-axis direction)
   Curing device		LED-UV system
   Interface		Ethernet 10GBASE-T
   Safety standard		UL 62368 ETL / CE Marking (EMC, Machinery directive, and RoHS) / REACH / RCM / KC / UKCA
   Power supply		(Single phase, AC200-240V±10%, 50/60Hz±1Hz, 24 A) ×3
   Power consumption		INLET1 to 3 | Each INLET: Less than 4.8 kVA
   Installation environment	Temperature	20 – 30 °C (68 – 86 °F)
   	Relative humidity	35 - 65％Rh (Non condensing)
   	Accuracy maintained temperature	20 – 25 °C (68 – 77 °F)
   	Temperature gradient	Less than ± 10 °C/h (± 18 °F/h)
   	Dust	Similar to standard office environments
   Assembled Dimensions (W×D×H)		Approx. 5,400×5,600×1,700 mm (212.6×220.5×66.9") or less
   Weight		Approx. 1,500 kg (3,306.9 lbs.) or less

Production Example of JFX600-2531

*Click to view larger image.

Irregular shapes		Furniture		Furniture		Display case

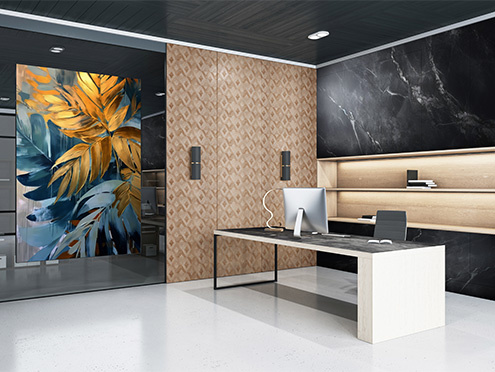

Indoor advertisement		Outdoor advertisement		Bathroom		Wall display

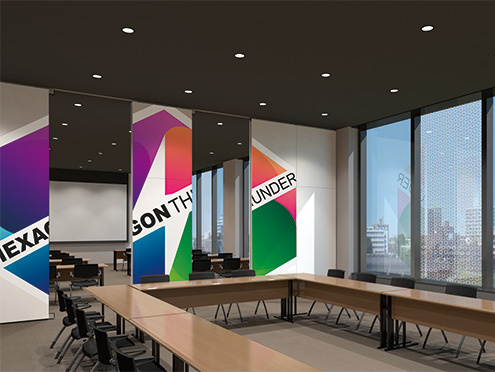

Architectural substrates (plywood)		Partition, Glass
