LC-PM5-200-5PT 5-Color Servo Rotary Shuttle Pad Printing Machine with Auto Pad

Product Description

Operation mode: semi-automatic
Printing color number: 5 colors
Print heads: 5
Steel plate size 180x360mm*0.5mm
Ink cup size 160mm*150mm
Maximum printing speed 600~800pcs/hr
Up and down stroke 0-200mm
Front to back path 0-450mm
weight 500kg
power 3.2KW
Machine size 1350x1700x1800mm
Table area: 165×165mm
Workstation: 1Pcs
Power supply: 220V 50Hz
Air pressure: 6 Bar

Application Area
This advanced 5-color servo rotary shuttle pad printing machine is ideal for high-precision, multi-color printing on complex, cylindrical, and irregularly shaped products. It is widely used across various industries for:

• Consumer Electronics: Printing intricate logos, functional icons, and multi-color patterns on smart device casings, power banks, and electronic components.
• Automotive Parts: Applying durable, multi-color warning labels, parameters, and decorative graphics on curved dashboards, steering wheel buttons, and cylindrical automotive components.
• Cosmetics & Personal Care: High-quality, multi-color branding and gradient designs on perfume caps, lipstick tubes, and skincare packaging.
• Toys & Sporting Goods: Vibrant, multi-color patterns on helmets, safety gear, and plastic toys.

Product Advantages

• Servo-Driven Precision: Equipped with a servo rotary shuttle system, the machine delivers exceptional positioning accuracy and smooth motion, ensuring flawless 5-color registration with minimal misalignment.
• Integrated Auto Pad Clean System: Features an automatic pad cleaning mechanism that removes residual ink between print cycles, preventing color contamination and maintaining crisp, high-definition multi-color prints.
• Optimized for Complex Shapes: The 450mm front-to-back stroke and 200mm vertical stroke provide ample travel for printing on tall, wide, or deeply contoured products.
• High Production Efficiency: Capable of producing 600–800 pieces per hour, striking an excellent balance between speed and premium print quality for medium-to-large batch runs.
• Robust & Stable Build: Weighing 500kg with a solid footprint, the machine guarantees high stability during high-speed servo operations, minimizing vibration and extending component lifespan.
• Closed Ink Cup System: Utilizes 160mm x 150mm sealed ink cups to prevent solvent evaporation, reduce ink waste, and maintain a safe, eco-friendly working environment.

Machine Introduction
The LC-PM5-200-5PT is a premium semi-automatic pad printing machine engineered for demanding multi-color applications. At its core is a precision servo-driven rotary shuttle system that replaces traditional pneumatic drives, offering superior speed control, repeatability, and longevity. Designed with 5 independent print heads and a generous steel plate size (180x360mm), it easily accommodates complex, multi-layered designs.

A standout feature of this model is the integrated automatic pad clean system, which actively cleans the silicone pad between color stations. This innovation is critical for 5-color printing, as it prevents ink bleeding and ensures each color remains vibrant and distinct. With a sturdy 500kg cast structure, a 3.2KW power supply, and adjustable strokes (up to 450mm horizontally and 200mm vertically), this machine provides the versatility and reliability needed for high-end manufacturing. Operating on standard 220V/50Hz power and 6 Bar air pressure, the LC-PM5-200-5PT is the ultimate solution for manufacturers seeking to elevate their multi-color printing quality and production efficiency

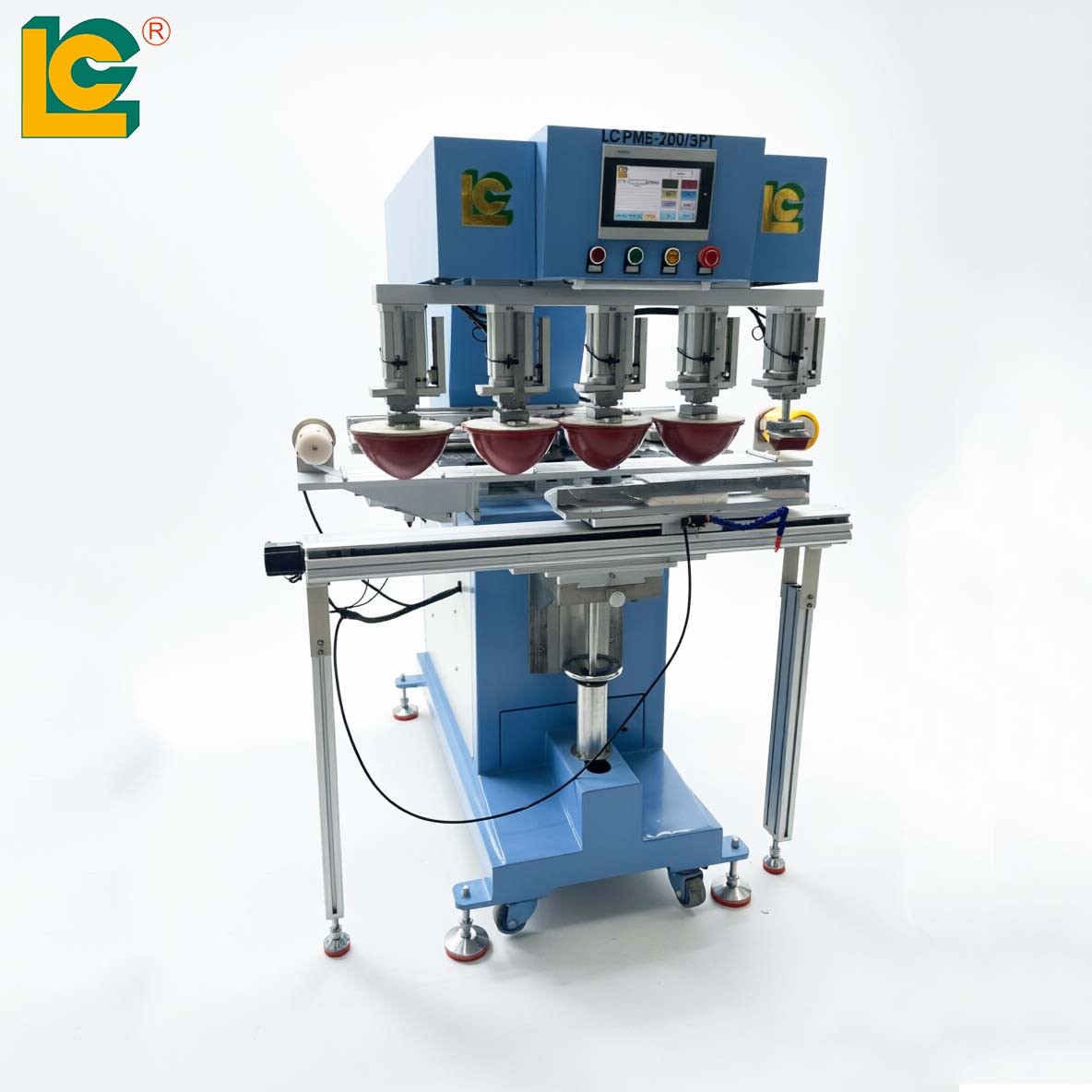

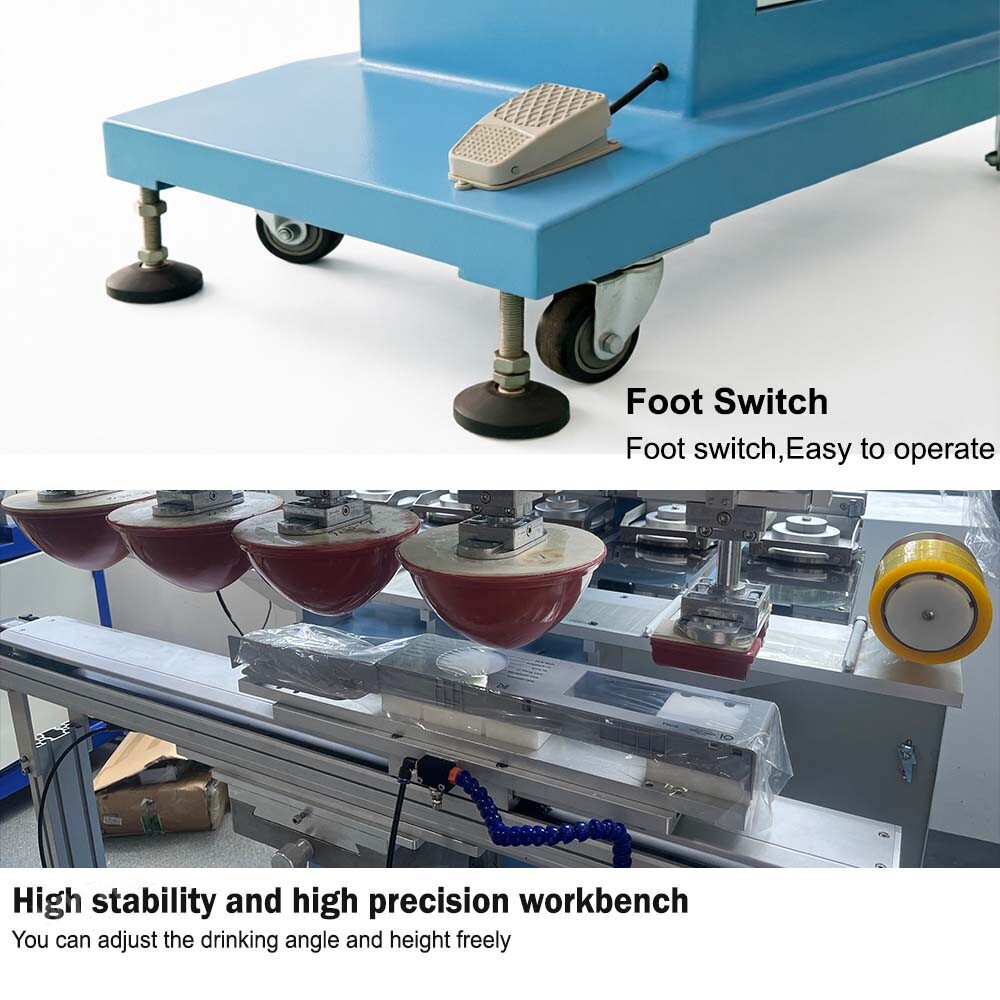

Product Image
