Dongguan Mingtong Optoelectronics Co., Ltd
| Payment Terms | L/C, T/T |
| Delivery Time | It depends on the actual situation |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Supply Ability | 200km/Day |
| Name | Figure 8 Fiber Optic Cable |
| Application | Telecommunication, Aerial, Duct, Telecom, Network |
| Fiber Type | G652D, G657A1, G657A2 |
| Highlight | GYTC8S Outdoor Fiber Optic Cable, Figure 8 Outdoor Fiber Optic Cable, GYTC8S outdoor fiber patch cable |
| Messenger Diameter | 5.0mm |
| Messenger | 7*1.0mm Steel Wire |
| Brand Name | MingTong |
| Model Number | GYTC8S |
| Certification | ISO |
| Place of Origin | Dongguan CHINA |
View Detail Information
Explore similar products
Optical GYTA/S 24 Core Fiber Optic Cable Communication Cableoutdoor Single Mode
GYFTY 60 Core Loose Tube Non - Metallic Black Jacket Outdoor Fiber Optic Cable
GYFTY 72 Core Loose Tube Non - Metallic & Non - Armored Outdoor Fiber Optic
GYFTY 96 Core Loose Tube Non - Metallic & Non - Armored Outdoor Fiber Optic
Product Specification
| Payment Terms | L/C, T/T | Delivery Time | It depends on the actual situation |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board | Supply Ability | 200km/Day |
| Name | Figure 8 Fiber Optic Cable | Application | Telecommunication, Aerial, Duct, Telecom, Network |
| Fiber Type | G652D, G657A1, G657A2 | Highlight | GYTC8S Outdoor Fiber Optic Cable, Figure 8 Outdoor Fiber Optic Cable, GYTC8S outdoor fiber patch cable |
| Messenger Diameter | 5.0mm | Messenger | 7*1.0mm Steel Wire |
| Brand Name | MingTong | Model Number | GYTC8S |
| Certification | ISO | Place of Origin | Dongguan CHINA |
| High Light | GYTC8S Figure 8 Fiber Optic Cable ，Figure 8 Fiber Optic Cable Outdoor ，Self Supporting Fiber Optic Cable Outdoor | ||
Description:

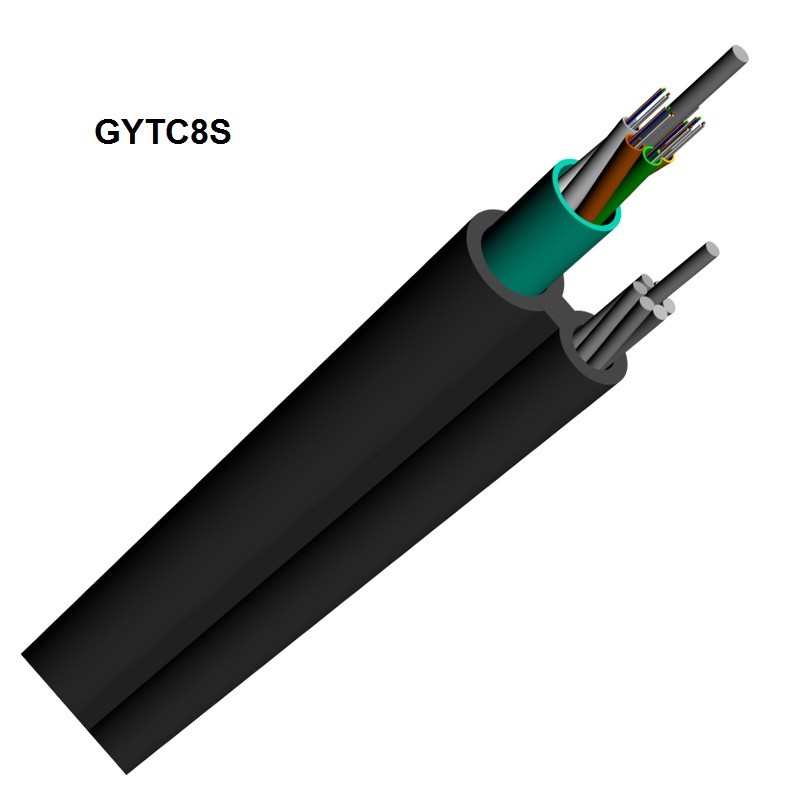

Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube stranded around dielectric central member. The cable core is protected with jelly or waterblocking material to prevent water intrusion and migration, protected with a corrugated steel tape armor. All whole unit and galvanized steel messenger are covered with black polyethylene outer jacket.

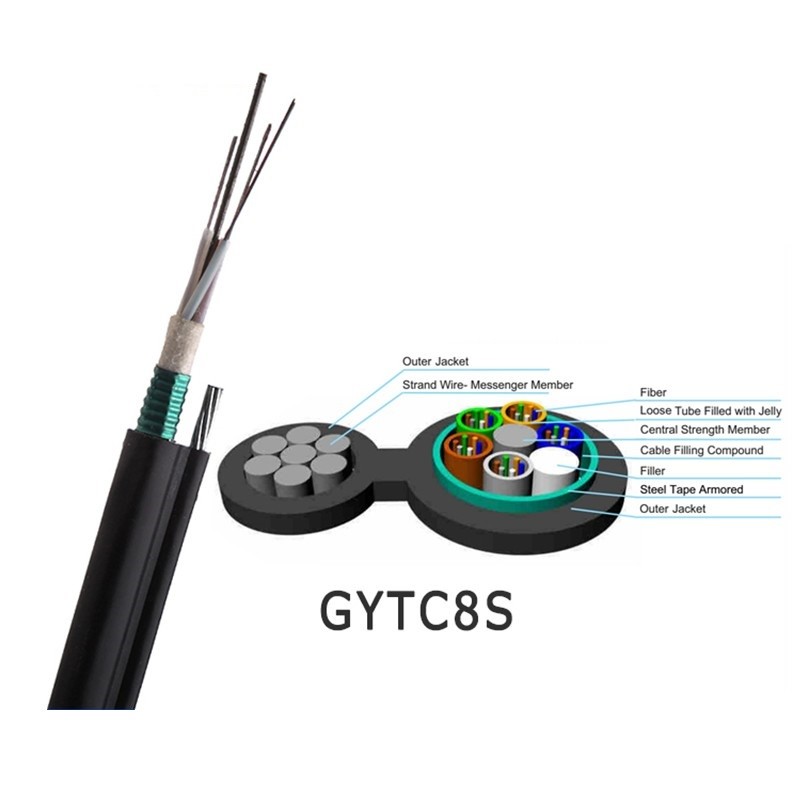

Structure:
Feature:
Specification:
Fiber G652D
| Category | Description | Specifications | ||
| Before cabling |
After cabling | |||
| Optical Specifications | Attenuation @1310 nm | ≤0.34 dB/km (max.) | ≤0.36 dB/km (max.) | |
| Attenuation @1550 nm | ≤0.20 dB/km (max.) | ≤0.22 dB/km (max.) | ||
| Attenuation @1625 nm | ≤0.23dB/km | ≤ 0.25 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324 nm | |||
| Zero Dispersion Slope | ≤ 0.090 ps/nm2·km | |||
| PMD Link value (M=20cables Q=0.01% ) maximum PMDQ | 0.2 ps/√km | |||
| Cable Cutoff Wavelength (λcc) | ≤1260 nm | |||
| Macro bending Loss (1 turn; Ф32 mm) @1550 nm (100 turns; Ф60 mm) @1625 nm (100 turns; Ф50 mm) @1310 &@1625 nm |
≤ 0.05 dB ≤ 0.05 dB ≤0.05 dB | |||
| Mode Field Diameter | @1310 nm | 9.2±0.4μm | ||
| @1550 nm | 10.4±0.5μm | |||
| Dimensional Specifications | Cladding Diameter | 125 ±0.7μm | ||
| Core/clad concentricity error | ≤0.5μm | |||
| Cladding Non-Circularity | ≤1.0% | |||
| Mechanical Specifications | Proof stress | ≥0.69Gpa | ||
Application:
Relalted Products:
Company Overview:
DONGGUAN TW-SCIE CO., LTD. is powered by 15 years of collective experience in the field of Optical communication products.
We have rich experience in the international trade and highly appraised by our international customers for our integrity, good quality and on time delivery.
We have a vast clientele in Europe , South America and Southeast and Asia.
Products supplied by DONGGUAN TW-SCIE CO., LTD. are engineered for local and international customers to meet a variety of environmental operating conditions and to meet local and international standards.
We always strive to create a favourable environment that encourages innovation and technological development to our customers
Packing and shipping:
