Product Specification
Payment Terms | L/C, T/T | Supply Ability | 200km/Day |
Delivery Time | It depends on the actual situation. | Model No | ADSS |
Fiber | Single Mode Or Multi Mode | TypeLoose Tube Material& Filling Material | PBT&Jerry |
Color Of Loose Tube | Blue, Orange,Green , Brown,Red Etc | Core Moisture Protection Methodology | Water Blocking Tape Or Filling Compound |
Strength Material | High Flexible Amaid Yarn | Cable Color | Black |
Highlight | G652D Aerial ADSS Fiber Optic Cable, HDPE Aerial ADSS Fiber Optic Cable, FRP Aerial ADSS Fiber Optic Cable | Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
Name | ADSS Cable | Brand Name | MingTong |
Model Number | ADSS | Certification | ISO |
Place of Origin | Dong Guan China | ||
High Light | g652d adss fiber optic cable ,g652d fiber optic adss cable ,aerial adss fiber optic cable |

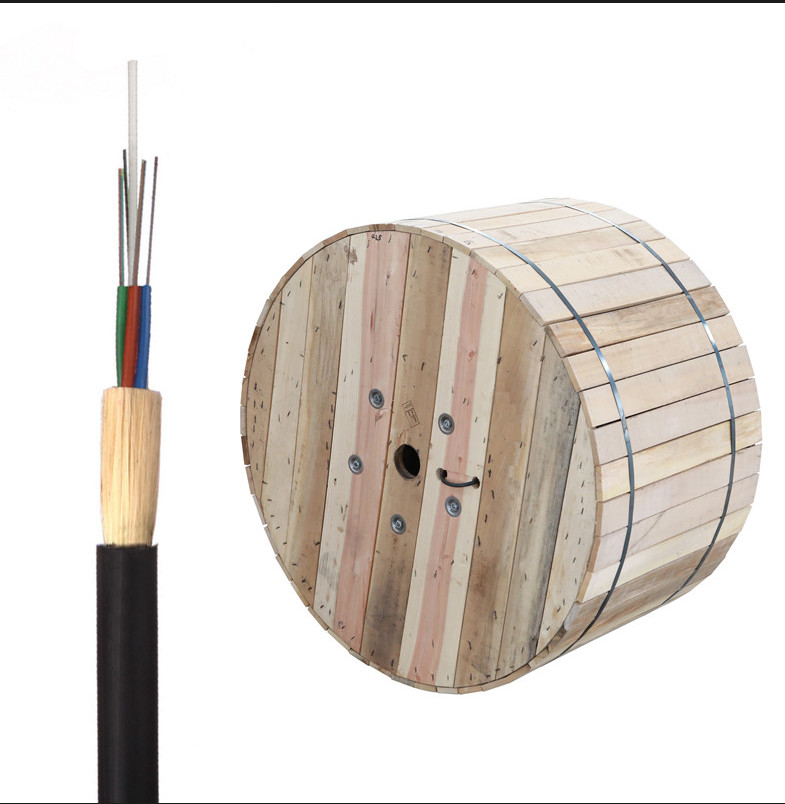

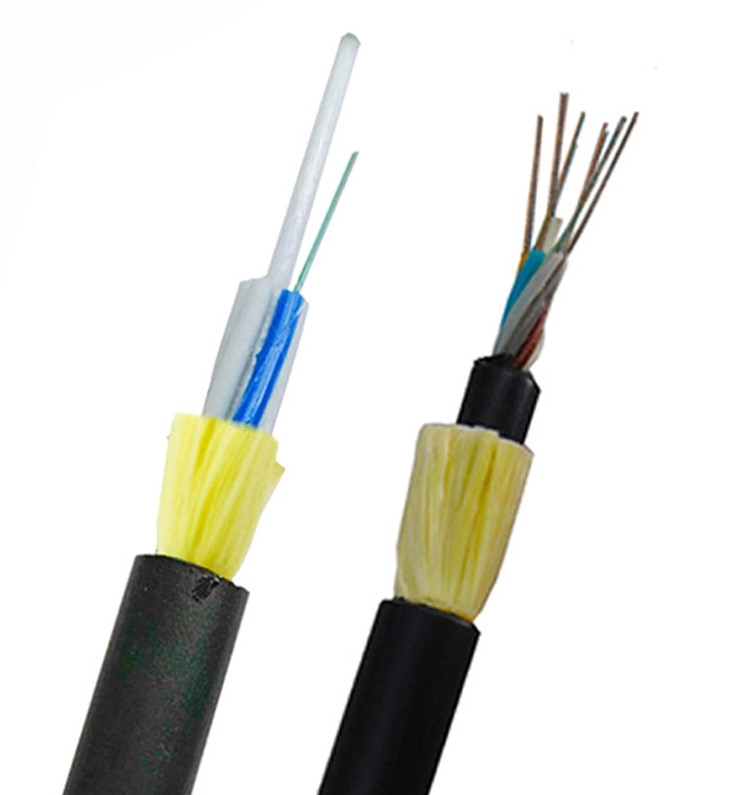

G652D fiber FRP black HDPE sheath Aerial ADSS Fiber Optic Cable
ADSS cables(Full Dielectric Self Support) are ideal for installation in power distribution and transmission environments. ADSS does not require support or messenger lines, so it can be completed in one installation, making ADSS an economical and simple way to realize fiber optic networks. It is the first choice when producing your own accessory hardware and supplying formed wire accessories.
Characteristics
1.All-dielectrical self-supporting aerial fiber optic cable, no metal material in the structure.
2.Large number of fiber cores, light weight, can be laying with the power line, saving resources.
3.Adopt high tensile strength aramid material to withstand strong tension and prevent cockles and gunshots.
4.Small thermal expansion, the variation of the arc of the cable line is small when the temperature changes greatly.
5.PE/AT outer sheath.
Applications
1.Adopted to Outdoor distribution
2.Network in high electromagnetic interfering places
3.Long distance and local area network communication
4.Low-voltage transmission and distribution system
Optical Characteristic
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Attenuation(+20ºC) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
@1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
@1310nm | ≤0.36 dB/km | ≤0.40dB/km | |||
@1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
@1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm |
ADSS Fiber Optic Cable Technology Specification: | ||||||||
Ref.outer diameter (mm) | Ref.weight kg/km Weight | Ref.daily max.working tension (kN) | Max allowable working tension (kN) | Break strength (kN) | Strength member CSA (mm2) | Modulus of elasticity kN/ (mm2) | Heat expansion coefficient ×10-6 /k | |
PE sheath | AT sheath | |||||||
12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 |
13 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 |
13.3 | 137 | 148 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 |
13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 |
13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1.0 |
14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 |
14.9 | 171 | 185 | 6.75 | 18 | 45 | 22 | 16.4 | 0.6 |
15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18 | 0.3 |
15.5 | 190 | 204 | 9.0 | 26 | 60 | 32.2 | 19.1 | 0.1 |
15.6 | 194 | 208 | 10.5 | 28 | 70 | 33 | 19.6 | 0.1 |
16.3 | 211 | 226 | 12.75 | 34 | 85 | 40 | 20.1 | -0.4 |
16.8 | 226 | 242 | 15.45 | 41 | 103 | 48 | 24 | -0.5 |
17.2 | 236 | 253 | 16.2 | 45 | 108 | 51 | 25.1 | -0.8 |
17.9 | 249 | 266 | 18 | 50 | 120 | 58.8 | 26.1 | -0.8 |
ADSS optic fiber cable Optical Characteristics: | ||||
Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
A1b:62.5/125 | ||||
Singlemode | G.652(A,B,C) | B1.1:Conventional fiber | ||
G.652D | B2: Zero dispersion shifted | |||
G.655 | B1.2 :Cut-off wavelength shifted | |||
G.657(A1,A2 ,B3) | B4: Main technical data for positive | |||
dispersion shifted single-mode fiber |
