Dongguan Mingtong Optoelectronics Co., Ltd
| Payment Terms | L/C, T/T |
| Supply Ability | 200km/Day |
| Delivery Time | It depends on the actual situation. |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Name | OPGW Cable |
| Application | Replacemnet Of Aerial Ground Wire |
| Fiber | G652D, G657A1, G657A2 |
| Type | Professional Manufactures |
| Cable Diameter | 9-18.2mm |
| Package | Iron-wooden Reel |
| Highlight | 12 Swg Acsr Wire, 12 Swg Acsr Overhead Line Conductor, Acsr Far East Cable |
| Brand Name | MingTong |
| Model Number | OPGW |
| Certification | ISO |
| Place of Origin | Dong Guan China |
View Detail Information
Explore similar products
OPGW-96B1 96 Core Optical Fiber Composite Overhead Ground Wire
OPGW Optical Ground Wire 36 Core Outdoor Aerial Optical Fiber Ground Wire
OPGW full form 72 Core Outdoor Aerial Fiber Optic Cable large diameter, large
60 Core OPGW Optical Ground Wire Outdoor Aerial Fiber Optic Cable double layer
Product Specification
| Payment Terms | L/C, T/T | Supply Ability | 200km/Day |
| Delivery Time | It depends on the actual situation. | Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Name | OPGW Cable | Application | Replacemnet Of Aerial Ground Wire |
| Fiber | G652D, G657A1, G657A2 | Type | Professional Manufactures |
| Cable Diameter | 9-18.2mm | Package | Iron-wooden Reel |
| Highlight | 12 Swg Acsr Wire, 12 Swg Acsr Overhead Line Conductor, Acsr Far East Cable | Brand Name | MingTong |
| Model Number | OPGW | Certification | ISO |
| Place of Origin | Dong Guan China | ||
| High Light | 12 SWG ACSR Wire ，ACSR Far East Cable ，ACSR Wire Overhead Line | ||
ABC systems are used in city power grid transmission lines, with an operating voltage of up to 600/1000 volts. They are mainly used for overhead single-phase and three-phase electricity distribution, as well as other purposes. They have a stable working temperature range of -10°C to 80°C and are economical, with good electrical properties and a lower cost than copper cables. They are also flexible and easy to install, making them suitable for distribution and other applications. They provide safety by preventing electric short circuits and potential fire risks, while being durable against UV radiation, moisture, and corrosion. Additionally, they have an aesthetically pleasing finish and are adaptable to the physical properties and electrical needs of the African environment and market.
Specifications

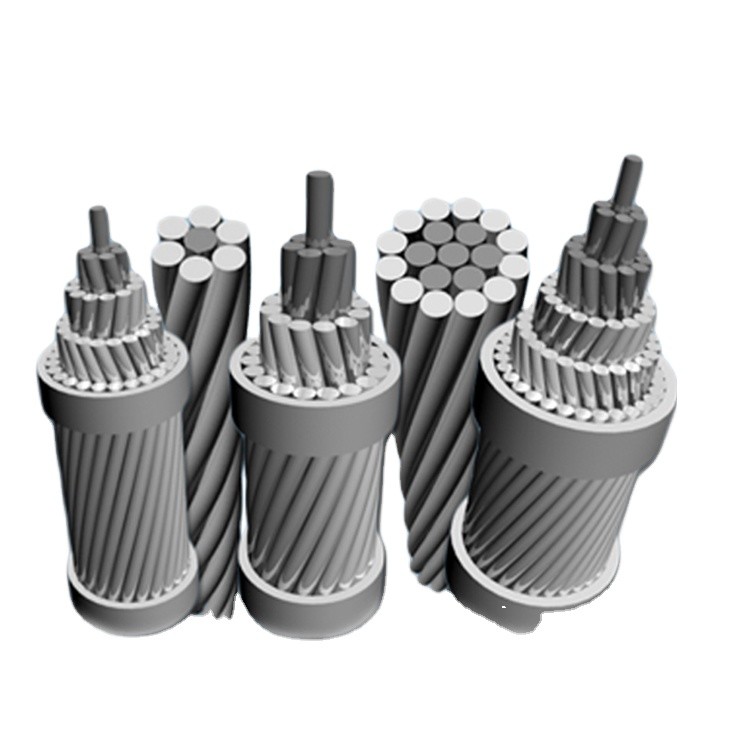

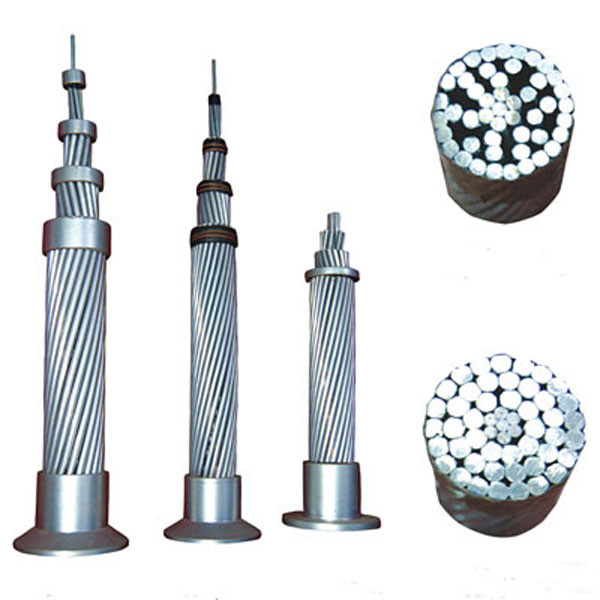

| Conductor Technical Structure | Unit | Value | ||
| Structure | Center: steel wire | Nos./mm | 1/2.0 | |
| Layer 1:steel wire | 6/2.0 | |||
| Layer 2: Aluminum wire | 10/2.57 | |||
| Layer 3: Aluminum wire | 16/2.57 | |||
| Standard | / | GB/T1179/IEC 61089/ASTM B232 / B232M-2009 / B498 | ||
| Stranding direction of outer layer | Direction | Right-hand | ||
| Conductor diameter | mm | 16.28±1％ | ||
| Cross section | mm2 | 156.8±1％ | ||
| Conductor weight | kg/km | 547.8±1％ | ||
| Rated tensile strength | kN | 52 | ||
| Modulus of Elasticity | GPa | 73.9 | ||
| Coefficient of linear expansion | 10-6/℃ | 18.9 | ||
| Max. DC Resistance at 20℃ | Ohm/ft | 0.637 | ||
| Lay ratio | Aluminum layer | times | 16-wire layer 10-14 10-wire layer 10-16 | |
| Steel layer | 6-wire layer 18-30 | |||
| Properties of Aluminum Wire (Before Stranding) | Unit | Value |
| Diameter and tolerance | mm | 2.57±0.03 |
| Min. tensile strength | MPa | 175 |
| Min. elongation at 250mm | % | 1.7 |
| Max. resistivity at 20℃ | Ω·mm2/m | 0.028172 |
| Properties of Steel wire (Before stranding) | Unit | Value |
| Diameter and tolerance | mm | 2.0±0.02 |
| Min. tensile strength | MPa | 1410 |
| Min. tension at 1% elongation | MPa | 1280 |
| Min elongation at 250 mm | % | 3.5 |
| Class of zinc coating | / | Class A |
|
Zinc coating quality | g /mm² | 230 |
| Conductor diameter | MM | 6.0 |
| Rated tensile strength | KN | / |
