Dongguan Mingtong Optoelectronics Co., Ltd
| Payment Terms | L/C, T/T |
| Supply Ability | 200km/Day |
| Delivery Time | It depends on the actual situation. |
| Application | Replacemnet Of Aerial Ground Wire |
| Fiber | G652D, G657A1, G657A2 |
| Type | Professional Manufactures |
| Cable Diameter | 9-18.2mm |
| Package | Iron-wooden Reel |
| Highlight | Overhead Ground Wire OPGW Cable, Aluminum Clad Steel OPGW Cable, Overhead Optical Fiber OPGW Cable |
| Jacket Material | Aluminium-coated Steel/ACS |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Name | OPGW Cable |
| Brand Name | MingTong |
| Model Number | OPGW |
| Certification | ISO |
| Place of Origin | Dong Guan China |
View Detail Information
Explore similar products
OPGW-96B1 96 Core Optical Fiber Composite Overhead Ground Wire
OPGW Optical Ground Wire 36 Core Outdoor Aerial Optical Fiber Ground Wire
OPGW full form 72 Core Outdoor Aerial Fiber Optic Cable large diameter, large
60 Core OPGW Optical Ground Wire Outdoor Aerial Fiber Optic Cable double layer
Product Specification
| Payment Terms | L/C, T/T | Supply Ability | 200km/Day |
| Delivery Time | It depends on the actual situation. | Application | Replacemnet Of Aerial Ground Wire |
| Fiber | G652D, G657A1, G657A2 | Type | Professional Manufactures |
| Cable Diameter | 9-18.2mm | Package | Iron-wooden Reel |
| Highlight | Overhead Ground Wire OPGW Cable, Aluminum Clad Steel OPGW Cable, Overhead Optical Fiber OPGW Cable | Jacket Material | Aluminium-coated Steel/ACS |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board | Name | OPGW Cable |
| Brand Name | MingTong | Model Number | OPGW |
| Certification | ISO | Place of Origin | Dong Guan China |
| High Light | steel opgw cable ，steel overhead ground wire ，g652d opgw cable | ||

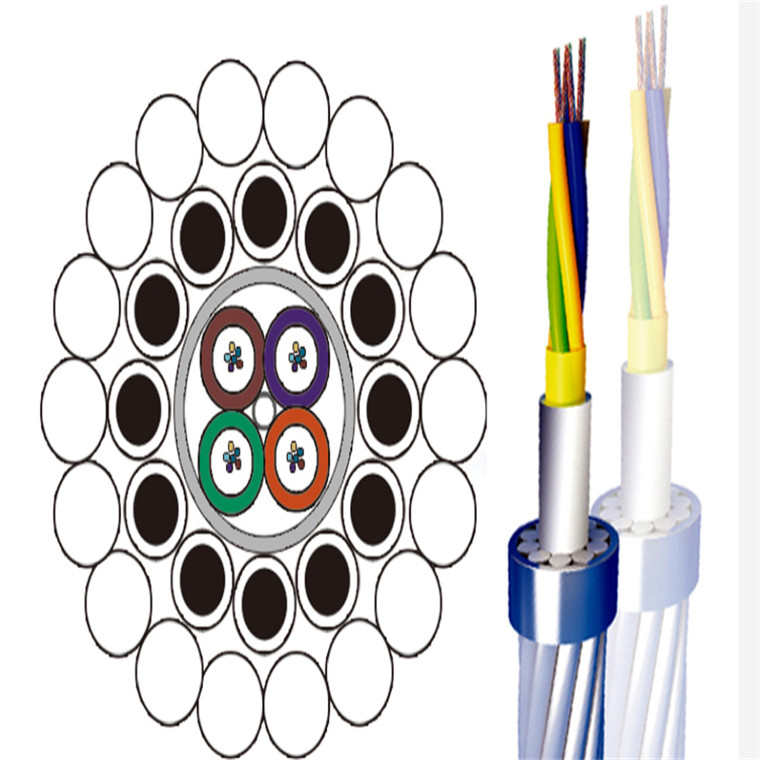

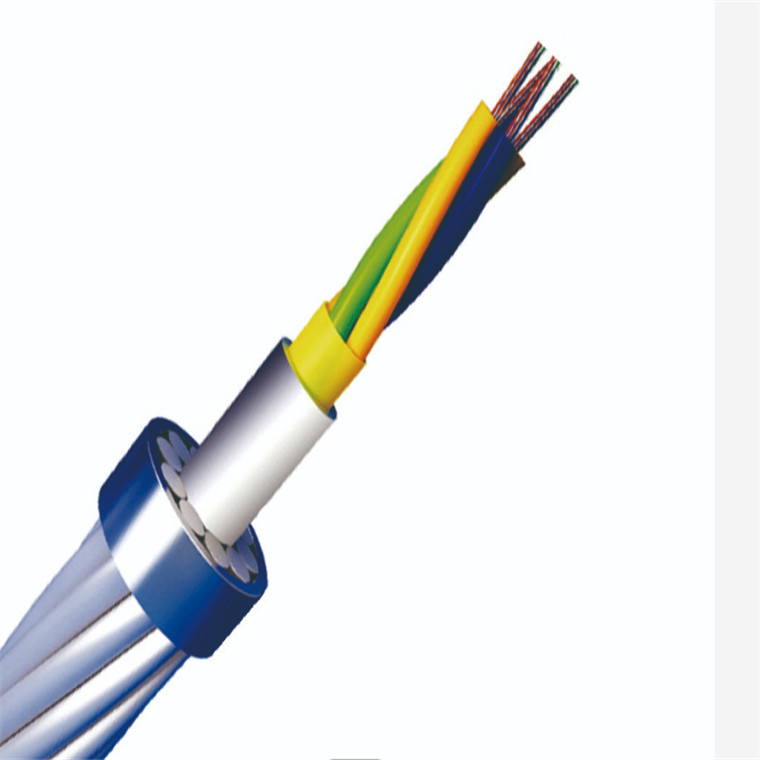

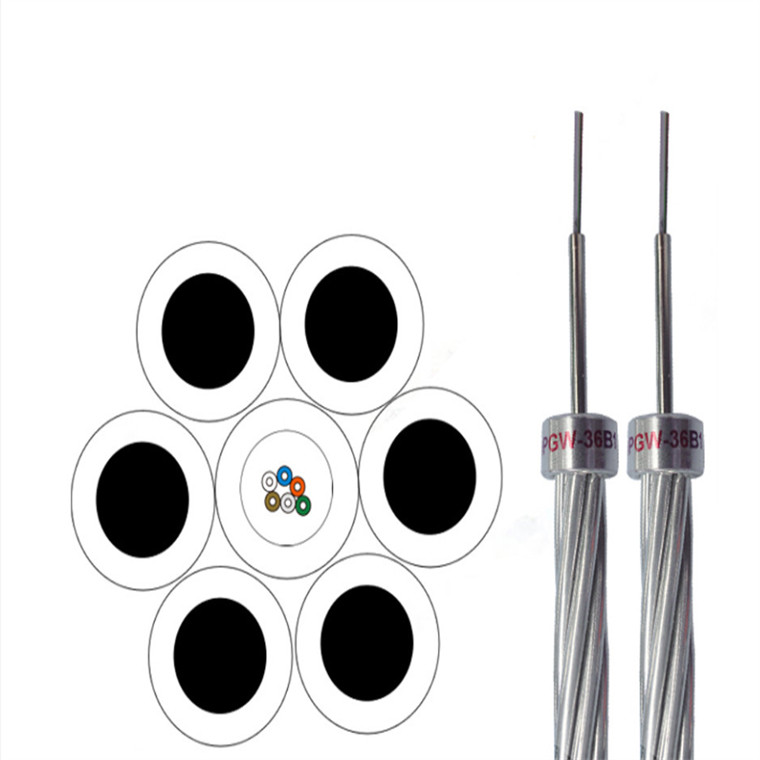

The central Al-covered steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. Al-covered Stainless Steel tube design increases the cross section of AL, to reach a better fault current and lightning resistance performance. Apply to the transmission line which requires small diameter and large fault current.
• Large diameter, large fiber capacity
• The structure is stable and the reliability is high
• Excellent capability against side and outstanding short circuit current capacity
• The optimum stranding design can obtain the surplus length of secondary optical fiber
• The number of strands can be designed in two or three layers
• Match with common ground wires
| Structure | Max fiber count | AS sectional area | Dia.(mm) | Weight (kg/km) | RTS(kN) | 20°C DC resistance (O/km) | 40-200°C Allowable short circuit current capacity(KA2.S ) | |
| OPGW-24B1.3-100-[118;50] | 1/2.6/20AS+5/2.5/20AS+ | 24 | ≈100 | 13.2 | ≤674 | ≥118 | ≤0.93 | ≥50 |
| 11/2.8/20AS,Unit 1/2.5 | ||||||||
| OPGW-24B1.3-100-[60;74] | 1/2.6/40AS+5/2.5/40AS+ | 24 | ≈100 | 13.2 | ≤479 | ≥60 | ≤0.49 | ≥74 |
| 11/2.8/40AS,Unit 1/2.5 | ||||||||
| OPGW-24B1.3-110-[133;63] | 1/2.6/20AS+5/2.5/20AS+ | 24 | ≈110 | 14 | ≤760 | ≥133 | ≤0.83 | ≥63 |
| 10/3.2/20AS,Unit 1/2.5 | ||||||||
| OPGW-24B1.3-110-[140;68] | 1/2.8/20AS+5/2.7/20AS+ | 24 | ≈110 | 14.3 | ≤791 | ≥140 | ≤0.80 | ≥68 |
| 11/3.05/20AS,Unit 1/2.6 | ||||||||
| OPGW-24B1.3-110-[67;95] | 1/2.9/20AS+5/2.8/20AS+ | 24 | ≈37 | 14.1 | ≤473 | ≥67 | ≤0.40 | ≥95 |
| 12/2.8/AA,Unit 1/2.7 | ≈74(AA) |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.
Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
