Shenzhen Dong Sheng Yuan Electrical Equipment Co., Ltd.
| Delivery Time | T+30 |
| Payment Terms | TT |
| Material | Metal |
| Voltage | 220V |
| Frequency | 50Hz |
| Installation Method | Floor mounted |
| Application | Residential, Commercial, Industrial |
| Brand Name | Dong Sheng Yuan |
| Model Number | XL |
| Place of Origin | China |
View Detail Information
Explore similar products
Metal Industrial Electric Metering Box Electrical Distribution Panel Customized
Compact Design Integrated Low Voltage Distribution Box Power Control Cabinet
50Hz Metal Low Voltage Distribution Box IP30 Rating For Lighting Distribution
0.4kV Construction Site Electrical Distribution Box Metal Enclosure Weather
Product Specification
| Delivery Time | T+30 | Payment Terms | TT |
| Material | Metal | Voltage | 220V |
| Frequency | 50Hz | Installation Method | Floor mounted |
| Application | Residential, Commercial, Industrial | Brand Name | Dong Sheng Yuan |
| Model Number | XL | Place of Origin | China |
| High Light | Custom Metal Power Distribution Cabinet ，0.4kV Power Distribution Cabinet ，Industrial Use Power Distribution Cabinet | ||
The XL-21 LV Power Distribution Cabinet is used for power and lighting distribution in three-phase three-wire, three-phase four-wire, and three-phase five-wire distribution systems, with an AC 50Hz rated voltage of 660V and a transformer capacity of 1000kVA or less, suitable for hotels, hospitals, ports, factories, and mines.
It can also be used as a wiring device for switching construction lines, dividing, switching, and marking branch lines, and providing convenience for wiring and line checking. It is mainly used for circuit breakers, current/voltage transformers, transformers, and metering secondary line terminals in power plants and substations.
| No. | Item | Unit | Parameter |
| 1 | Main Circuit Rated Voltage | V | AC380 |
| 2 | Auxiliary Circuit Rated Voltage | V | AC220/AC380 |
| 3 | Rated Frequency | Hz | 50 |
| 4 | Rated Insulation Voltage | V | 660 |
| 5 | Rated Current | A | ≤800 |

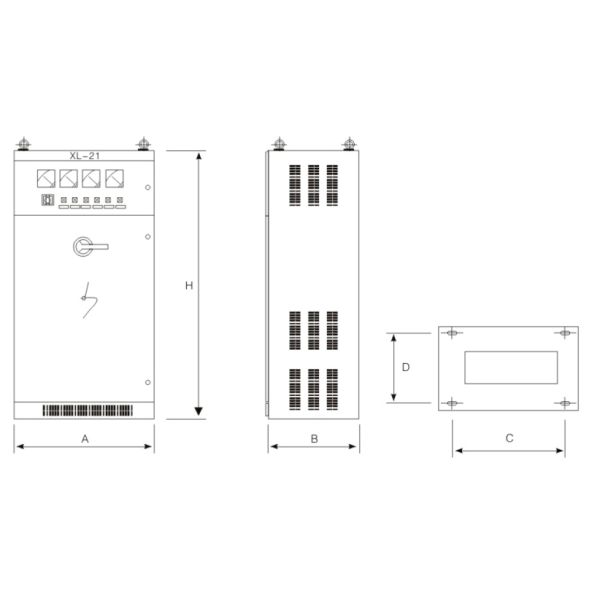

| Item | Width(A) | Height(H) | Deep(B) | Front and Rear Door(deep B) |
| Floor-mounted Outdoor Power Cabinet | 500 | 700 | 200 | – |
| 600 | 800 | 250 | – | |
| 600 | 1000 | 350 | 400 | |
| 600 | 1200 | 350 | 400 | |
| 700 | 1500 | 350 | 450 | |
| 700 | 1700 | 350 | 450 | |
| 800 | 2000 | 450 | 550 |
If you need more information, please see the PDF document above or contact us.
