Tecon Package Machinery Limited
| Payment Terms | L/C, T/T |
| Supply Ability | 16pcs per year |
| Delivery Time | 5 months after received your payment |
| Packaging Details | Wooden case |
| Step cut tube length (mm) | 500 - 1100 |
| Straight cut tube length (mm) | 500 - 1100 |
| A shape tube width (mm) | 370 - 620 |
| Printing color | 4 color |
| Cutting type | Straight cut / step cut |
| Layers | 2 - 4 plies of paper + 1 PP / PE film optional |
| Max. speed | 150 tubes/min |
| Normal production speed | 80 - 120 tubes/min |
| Paper roll width max. (mm) | 1300 |
| Overall dimension (m) | 35.3*3.1*3.2 |
| Total power (KW) | 32 |
| Design humidity | Max.95% |
| work hours | 300 days/year |
| Bearing | NSK Japan |
| Brand Name | Tecon |
| Model Number | ZT8762S ( ZT9804S ) |
| Certification | CE |
| Place of Origin | China |
View Detail Information
Explore similar products
Sugar Granule Bag Paper Tube Making Machine With NSK Bearing
High Speed Kraft Paper Bag Production Line Paper Bag Manufacturing Machine
High Speed Kraft Paper Bag Production Line Paper Bag Manufacturing Machine
Full Automatic Custom Paper Tube Manufacturing Machine With 4 Color Printing 30
Product Specification
| Payment Terms | L/C, T/T | Supply Ability | 16pcs per year |
| Delivery Time | 5 months after received your payment | Packaging Details | Wooden case |
| Step cut tube length (mm) | 500 - 1100 | Straight cut tube length (mm) | 500 - 1100 |
| A shape tube width (mm) | 370 - 620 | Printing color | 4 color |
| Cutting type | Straight cut / step cut | Layers | 2 - 4 plies of paper + 1 PP / PE film optional |
| Max. speed | 150 tubes/min | Normal production speed | 80 - 120 tubes/min |
| Paper roll width max. (mm) | 1300 | Overall dimension (m) | 35.3*3.1*3.2 |
| Total power (KW) | 32 | Design humidity | Max.95% |
| work hours | 300 days/year | Bearing | NSK Japan |
| Brand Name | Tecon | Model Number | ZT8762S ( ZT9804S ) |
| Certification | CE | Place of Origin | China |
| High Light | paper tube making machines ，paper tube manufacturing machine | ||

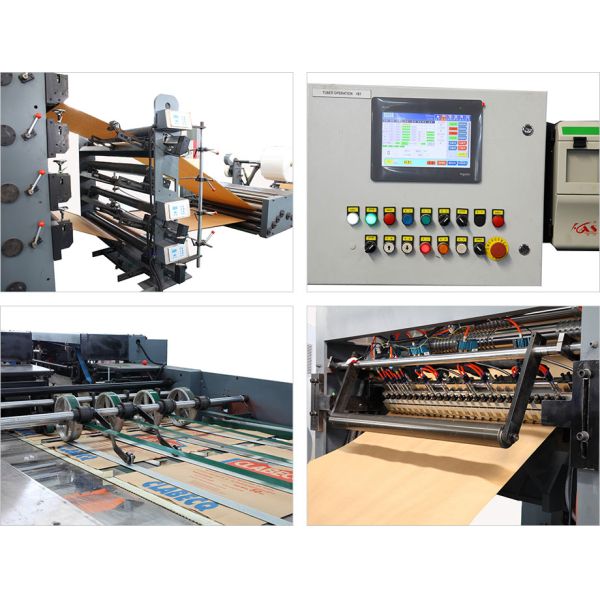

Automatic Rectification and Adjustable Drive Aligning Servo System Tuber Machine
|
Configuration | ZTA008 4 color servo printing machine with blade |
| ZTB006 servo type paper reel racks | |
| ZTC001 Paper web guider(servo type) | |
| ZTD001 paper rectifier | |
| ZTE002 Intermittent air hole unit | |
| ZTE102 Auxiliary paper driver(servo type) | |
| ZTE202 Latitudinal perforation unit(servo type) | |
| ZTE302 Latitudinal gluing unit(servo type) | |
| ZTE402 Longitude gluing unit(servo type) | |
| ZTF004 servo forming unit(no M shape) | |
| ZTG003 Driving tearing-off unit(servo type) | |
| ZTH001 Counting and delivery unit |
Usage :
ZT8762S ( ZT9804S ) tuber machine can produce the paper bag that can wrapping cement,chemical,powder and some other PM material.It could product step and straight cutting tuber.The machine is automatic,except the operation of reeling and guiding the scroll.
Composing :
| Printing machine |
| Paper roll stands |
| Paper web guide |
| Automatic paper rectifier |
| Perforation unit |
| Gluing unit |
| Tubes forming unit |
| Driving tearing-off unit |
| Delivery&couting line |
| Setrvo control |
Advantage :
| Device | Function |
| Scraper type | Enhance the printing quality. |
| Print roller | Automatically disengage when the machine stops,preventing the paper sticking to the print roller. |
| Brake band | Educe the inertance of the rolling scroll. |
| Magnetic powder brake | Educe the inertance of the rolling scroll. |
| Constant tension control | Educe the inertance of the rolling scroll. |
| Paper web guide unit | Separate the different scroll. |
| Automatic paper rectifier | Make the paper on the right position |
| Servo system | Component on printing,perforation,gluing and separation. Length and width range will be enlarge and it have no need to change wheel when change produce other size of tuber. |
Tuber machine spare parts sent for free :
| Name | Location | Specification | Material | Quality |
| V type knife | ZTE0202005 | V type knife 5MM | 65Mn | 16 |
| Curved knife | ZTE0202002 | curved knife | 65Mn | 22 |
| gluing plate | ZTE0304001 | 5mm/ZT053-16-9A | rubber | 2m² |
| Roller | ZTF0003020 | ZT06-01-01 | PU | 4 |
| press roller | ZTG0007008 | HCZT07-04-05 | PU | 4 |
| Cylinder | ZT03 | CP95SDC80-80 | 4 | |
| Cylinder | ZT054-06 | 10Y-25D63N10K | 8 | |
| A-C linker | 3TF41.22-0XN2 | 2 | ||
| auxiliary relay | 3UA50 40-1C | 4 | ||
| Solenoid valve | 4V210DC24V | 2 |
ZT8762S ( ZT9804S ) Tuber Machine :
Enhanced Type :
