| Name | 8 Pin Magnetic Connector |
| Material | THN, Brass C3604, SUS304, NdFeB N52 |
| Spring force | 80g±20g |
| Working storke | 1.0mm |
| Volatge | 12V |
| Current | 3A |
| Magnetic force | 450g |
| Mechanical life | 5000 cycle Min. |
| Contact resistance | 50mΩ Max (PIN) |
| Salt spray test | 48H |
| Color | Black, yellow |
| Brand Name | UPE |
| Model Number | VIC1450A / VIC1450B |
| Certification | ISO9002 |
| Place of Origin | China |
View Detail Information
Explore similar products
2.2mm Pitch Magnetic Connectors 3A Right Angle Pin Connector 4 Pin
2pin male brass C6801 pogo pin magnetic connectors with N52 magnet
2.0mm Pitch Magnetic Power Connector DIP Male Female Connectors 4 Pin With N52
Customized Magnetic Power Connectors Black 6 Pin Magnetic Connector With High
Product Specification
| Payment Terms | T/T | Supply Ability | 5KPCS/Day |
| Delivery Time | 12-15 working days | Packaging Details | PE bags |
| Name | 8 Pin Magnetic Connector | Material | THN, Brass C3604, SUS304, NdFeB N52 |
| Spring force | 80g±20g | Working storke | 1.0mm |
| Volatge | 12V | Current | 3A |
| Magnetic force | 450g | Mechanical life | 5000 cycle Min. |
| Contact resistance | 50mΩ Max (PIN) | Salt spray test | 48H |
| Color | Black, yellow | Brand Name | UPE |
| Model Number | VIC1450A / VIC1450B | Certification | ISO9002 |
| Place of Origin | China | ||
| High Light | 12V 3A magnetic pogo pin connector ，8 pin magnetic connector for electronics ，magnetic pogo pin power connector | ||

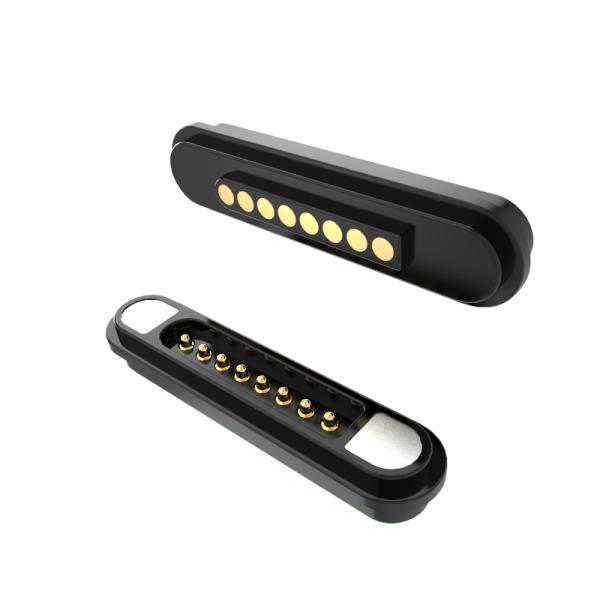

12V 3A Magnetic Pogo Pin Connector 8 Pin Magnetic Connector For Electronic Device.
UPE – Professional Magnetic Connector & Magnetic Cable Connector Manufacturer | Custom Solutions.
UPE is a leading manufacturer of high-quality magnetic connectors and magnetic cable connectors, specializing in innovative, reliable, and customizable connectivity solutions. With our team of expert designers and engineers, we deliver tailored magnetic connector designs to meet your specific requirements—whether for industrial, consumer, or specialized applications.
Materials & Construction
Pogo Pin/Female Pin:
Base Material: Brass
Plating: Gold (Au) over Nickel (Ni) for superior conductivity and corrosion resistance.
Plastic Housing:
Material: HTN + 30% UL94 V-0 (Black) – High-temperature resistant, flame-retardant.
Magnet:
Grade: NdFeB N52 (High-performance rare earth magnet)
Plating: Nickel (Ni) for durability.
Mechanical Performance:
Spring Force: 80g ±20g (at 1.0mm working stroke).
Mechanical Life: 50,000 cycles minimum.
Magnetic Force: >450g (secure attachment).
Environmental Resistance:
Salt spray test: 48 hours (corrosion-resistant)
.
Electrical Performance:
Rated Voltage: 12V.
Rated Current: 5.0A.
Contact Resistance: ≤50mΩ (per pin).
High-Voltage Testing:
AC 1000V / 0.5mA / 3 seconds.
DC 1000V / 0.5mA / 3 seconds.
Safety Design: Anti-short circuit protection.
Compliance & Certifications
ROHS & REACH Compliant – Environmentally friendly and safe for restricted substances.
Magnetic connector key advantages
✅ Robust Construction: Combustion-proof plastic, gold-plated contacts, and N52 magnets ensure longevity.
✅ High Precision: Tight tolerances (e.g., spring force ±20g) for consistent performance.
✅ Safety-Centric: Passes rigorous electrical and environmental tests (1000V HV, salt spray).
✅ Versatile: Ideal for applications demanding high-current, high-reliability connections.
8pin magnetic connectors parameter:
| Name | 8Pin Magnetic connectors |
| Pin | 8pin or customized |
| Pitch | 2.20mm |
| Type | Right angle |
| Pogo pin | Brass |
| Housing | Black HTN+30%GF UL94 V-0 |
| Magnet | Neodymium iron boron |
| Magnet grade | N52(As requirement) |
| Magetic force | 450G |
| Spring force | 80g±20g,at 1.0mm working storke. |
| Mechanical life | 5000 cycle Min.. |
| Current | 3.0A |
| Voltage | DC 12V |
| Contact resistance | 50mΩ Max (PIN). |
| High voltage test | AC1000 V0.5mA 3SEC / DC 1000V 0.5mA 3 SEC. |
| Salt spray test | 48H |
| Certification | ROHS or REACH compliant product |
| Test | 100% open and short test |
8pin male magnetic connectors:
8pin female magnetic connectors:
Recommended pcb layout:
Layout tolerance:±0.05mm
UPE Company’s Competitive Advantages:
1. High-Technology Production
Utilizes advanced manufacturing techniques for superior product quality.
2. Systematic Management System
Streamlined processes ensure efficiency and consistency in production.
3. ISO 9001 Certification
Demonstrates commitment to international quality management standards.
4. RoHS Compliance
All products meet Restriction of Hazardous Substances (RoHS) regulations, ensuring environmental and safety standards.
5.Short Development Lead Time
Faster prototyping and production cycles, enabling quicker market delivery.
6. Competitive Pricing & Stable Quality
Cost-effective solutions without compromising on reliability.
 |
| Brand Name: |
| Model Number: |
| MOQ: |
| Price: |
| Packaging Details: |
| Payment Terms: |
2.2mm Pitch Magnetic Cable Connector 8 Pin Magnetic Connectors With Right Angle Pogo Pin
1.Materials & Construction:
Pogo pin/Female pin: Brass (Plunger&Barrel plating Au over Ni);
Plastic: HTN+30%UL94 V-0 black, which can withstand high temperatures
Magnet: NdFeB N52 Plating Ni
2.Mechanical:
Spring force: 80g±20g,at 1.0mm working storke.
Mechanical life: 50000 cycle Min..
3.Electrical:
Voltage: 12 V.
Current: 5.0 A.
Contact resistance: 50mΩ Max (PIN) .
High voltage test: AC1000v 0.5mA 3SEC/DC1000v 0.5mA 3SEC
4.Product Description:
ROHS or REACH compliant product.
Magnetic force: more than 450g
Sale spray test: 48H
Product anti-short circuit protection design
Product application explaination(not limited to the following):
1. The PCB board can be soldered with a plug-in;
2. Mold molding and injection molding;
8pin magnetic connectors parameter:
| Name | 8Pin Magnetic connectors |
| Pin | 8pin or customized |
| Pitch | 2.20mm |
| Type | Right angle |
| Pogo pin | Brass |
| Housing | Black HTN+30%GF UL94 V-0 |
| Magnet | Neodymium iron boron |
| Magnet grade | N52(As requirement) |
| Magetic force | 450G |
| Spring force | 80g±20g,at 1.0mm working storke. |
| Mechanical life | 50000 cycle Min.. |
| Current | 5.0A |
| Voltage | DC 12V |
| Contact resistance | 50mΩ Max (PIN). |
| High voltage test | AC1000 V0.5mA 3SEC / DC 1000V 0.5mA 3 SEC. |
| Salt spray test | 48H |
| Certification | ROHS or REACH compliant product |
| Test | 100% open and short test |
8pin male magnetic connectors:
8pin female magnetic connectors:
Recommended pcb layout:
Layout tolerance:±0.05mm
UPE Company’s Competitive Advantages:
1. High-Technology Production
Utilizes advanced manufacturing techniques for superior product quality.
2. Systematic Management System
Streamlined processes ensure efficiency and consistency in production.
3. ISO 9001 Certification
Demonstrates commitment to international quality management standards.
4. RoHS Compliance
All products meet Restriction of Hazardous Substances (RoHS) regulations, ensuring environmental and safety standards.
5.Short Development Lead Time
Faster prototyping and production cycles, enabling quicker market delivery.
6. Competitive Pricing & Stable Quality
Cost-effective solutions without compromising on reliability.
Why do customers choose US?
1.Customization & Flexibility
2.Fast Samples = Faster Time-to-Market
3.Every connector undergoes rigorous quality checks( Incoming Material Inspection,In-Process Quality Checks,100% Final Testing,Traceability & Compliance)
4.Customer-Focused QC Flexibility
5.Real-Time QC Collaboration
Magnetic connectors application:
Ordering Process
Identify your requirements (connector type, quantity, customization needs, technical specifications)
Negotiate pricing and terms (bulk discounts available)
Confirm order details (connector type, quantity, customization)
Make payment via secure methods
Shipping and quality inspection
Track shipment and inspect product upon arrival
Payment method: T/T,PayPal,OCBC
Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day
Production Lead Time:10-15Working day
Made For: America,Europe,Asia,South African
Trade Term: EXW
Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
