TranzBrillix is a specialized manufacturer and supplier of linear motion components, including linear guideways, ball screws, and linear bearings. With a dual-track strategy of independent R&D and global brand partnerships, we deliver both cost-effective proprietary solutions and premium international brands, meeting the diverse needs of industries worldwide.
Linear Motion Products
Our guideways are fully compatible with HIWIN dimensions and engineered for precision, rigidity, and long service life:
HG & RG Series (High Load / Roller Type)
Widths: 15–65mm
Block types: Square / Flange
Materials: Rail S55C, Block SNCM220
EG Series (Low Profile)
Widths: 15–35mm
Compact design for space-limited equipment
Available in Square / Flange block options
MG Series (Miniature)
Materials: Stainless steel / Carbon steel
Widths: 5–15mm
Ideal for precision and compact devices
Ball Screws
Rolled C7 — economical solution for standard applications
Ground C5 / C3 — precision grades for high-accuracy positioning
Customization — special lengths, end machining, and non-standard designs
Linear Bearings
Various structures and sizes
Fully interchangeable with McMaster-CARR standards
Global Brand Partnerships
In addition to our proprietary products, TranzBrillix is an authorized distributor for globally recognized brands:
TBI – Market leader in ball screw technology
ABBA – Excellent cost-performance ratio
REXROTH – Premium German engineering for high-end applications
This unique combination enables us to provide customers with both competitive local manufacturing and trusted international brands.
Comprehensive product range: From 5mm miniature guides to 65mm heavy-duty roller rails
Premium materials: S55C, SNCM220, stainless steel, and carbon steel
Engineering support: Product selection, design, and customization
Reliable service: Global after-sales network and responsive support
With TranzBrillix you gain a one-stop partner for precision motion solutions—covering everything from mainstream manufacturing to advanced engineering projects.
Bldg 1,Yunjin Rd, Jianye Dist, Nanjing, Jiangsu, China 210019
Factory Location:
Yunjin Rd, Jianye Dist, Nanjing, Jiangsu, China
Trade & Market
Company slogan:
NanJing TranzBrillix Linear Motion Co., Ltd.
OEM Overview:
OEM / ODM – Custom Linear Motion Solutions
Flexible OEM and ODM services for linear guides, ball screws and related components, tailored to your brand and application.
OEM Production – Your Brand, Our Factory
For distributors, wholesalers and OEM partners, we provide stable batch production with your own branding and packing. Popular sizes can be arranged with safety stock to support fast local delivery.
Logo & Marking: Support laser marking on rails, blocks, screws and labels according to your brand guidelines.
Packing & Barcodes: Customized inner boxes, outer cartons and barcodes to match your warehouse system.
Stable Supply: Long-term production planning and safety stock for high-turnover items.
Confidential Cooperation: Protect customer drawings, prices and brand information with strict confidentiality.
ODM & Custom Projects
When standard models cannot fully match your machine design, our engineering team can work with you on customized linear motion solutions.
Custom Linear Guides
Non-standard rail lengths and hole patterns.
Special block dimensions or mounting interfaces.
Surface treatment options for different environments.
Adjustable preload and sealing options.
Custom Ball Screws
Special leads and diameters for unique applications.
Custom end machining according to your shaft drawings.
Different nut types, flanges and preload classes.
Matched support units, housings and couplings.
By understanding your machine structure, load conditions and working environment, we can recommend practical designs that balance performance, cost and delivery time.
How OEM / ODM Cooperation Works
A clear and transparent process helps both sides move from idea to stable mass production smoothly.
1. Requirement & Drawing Confirmation
Share your requirements, drawings, quantities and target markets. We will review feasibility and suggest options if needed.
2. Technical Evaluation & Quotation
Our engineers evaluate materials, processes and tolerances, and then provide a detailed quotation and lead time.
3. Sample Production & Testing
Samples are produced and tested in our factory, then sent to you for installation and on-machine verification.
4. Mass Production & Quality Control
After sample approval, we start batch production with the same process route and quality control plan.
5. Long-term Support & Re-order
We keep production records and inspection reports for repeat orders, and can adjust details based on your feedback.
Discuss Your OEM / ODM Project
Whether you are building your own brand or looking for a cost-effective alternative supplier, our team is ready to review your drawings and requirements.
You can send us your current models, photos or dimensional drawings, and we will offer a technical proposal and quotation.
PRODUCTION LINE – Linear Guide & Ball Screw Manufacturing
Integrated production for linear guides, ball screws and related accessories – from raw material to finished products in one factory.
10,000+ m²
Plant Area
Factory area with separate zones for machining, grinding, heat treatment and assembly.
80+
CNC & Grinding Machines
CNC centers, grinding machines and auxiliary equipment dedicated to linear motion components.
300,000+ pcs/year
Annual Capacity
Combined yearly output for linear guides, ball screws and matched accessories.
40+ Countries
Export Markets
Stable supply for OEMs and distributors in Europe, America and Asia.
Production Flow
Each rail and screw follows a standardized production route with full traceability – from incoming raw material to final shipment. Consistent processes ensure repeatable quality for every batch.
1. Raw Material Incoming & Inspection
Steel bars and blanks are checked for hardness, composition and surface condition before entering production.
2. Cutting & Rough Machining
Materials are cut to length and rough machined to reserve accurate allowance for later grinding.
3. Heat Treatment / Hardening
Heat treatment improves hardness and wear resistance while controlling deformation within strict limits.

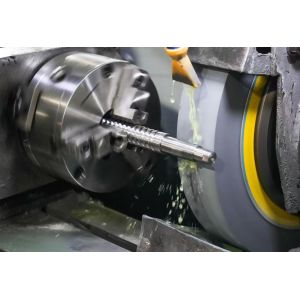

4. Precision Grinding & Milling
Rails, blocks and screw shafts are precision ground and milled to achieve straightness and dimensional accuracy.
5. Assembly & Preload Adjustment
Blocks, nuts and matched components are assembled, preloaded and tested for smooth running.
6. 100% Quality Inspection
Key parameters such as straightness, lead accuracy, roughness and preload are checked for every batch.
7. Anti-rust Oil & Packing
All parts receive anti-rust protection and export-grade packing suitable for long-distance shipment.
8. Warehouse & Shipment
Finished products are stored in a dedicated warehouse area and shipped by sea, air or courier.

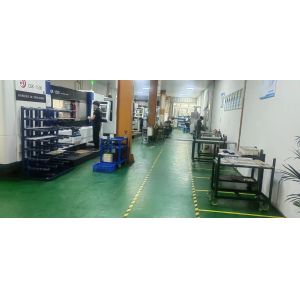

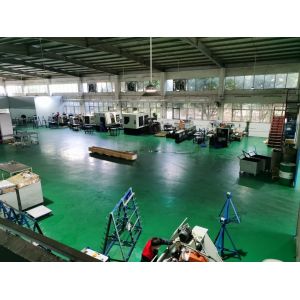

Workshop Tour
Take a closer look at our dedicated workshops for linear guides, ball screws and custom machining. Each area is organized for efficient production and quality control.
Linear Guide Workshop
Equipped with rail grinding lines, automatic chamfering machines and dust-controlled assembly areas, this workshop focuses on linear guides and blocks for various series and sizes.
From raw rails to assembled carriages, every step is monitored to keep stable accuracy and smooth movement for demanding automation applications.
Ball Screw Workshop
The ball screw workshop covers both rolled and precision ground ball screws. Critical processes such as thread forming, lead accuracy control and nut assembly are completed in-house.
Lead accuracy, surface roughness and preload are strictly controlled to meet different precision levels required by CNC, 3D printing and automation customers.

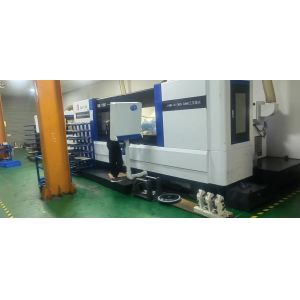

Machining & Assembly Area
CNC machining centers support non-standard end machining, custom flanges and complete unit assembly, including linear modules and screw-driven stages.
By finishing more work inside the factory, we help customers reduce assembly steps and shorten their own machine build time.
R&D:
R & D – Engineering Behind Precision
Dedicated R&D and engineering team focusing on linear motion technology, supporting both product optimization and customer projects.
Engineering Team
Our R&D and engineering team has long-term experience in linear guides, ball screws and related components. They work closely with production and quality departments to turn design concepts into stable, mass-producible products.
Experienced engineers with background in mechanical design and automation.
Familiar with common dimension standards in the linear motion industry.
Support for model selection and compatibility design in replacement projects.
Ability to interpret customer drawings and turn them into manufacturable solutions.
What We Focus On
R&D activities are not limited to new products. We continuously refine existing designs through testing and feedback from real applications.
Life & Load Performance
Optimizing raceway geometry and contact ratios.
Balancing dynamic load capacity with smooth movement.
Improving performance under vibration and repeated start–stop cycles.
Corrosion Resistance & Surface Treatment
Evaluating different materials for various environments.
Testing anti-rust coatings and surface treatments.
Designing suitable protection for high humidity or light chemical exposure.
Noise & Smoothness
Reducing running noise through ball circulation optimization.
Improving lubrication paths and sealing structures.
Ensuring smooth movement after long-distance transport and storage.
Co-Development with Customers
For key OEM and system integration projects, we welcome early-stage technical communication and joint development. By understanding your machine layout and application details, we can design more suitable linear motion solutions.
Early Involvement: Participate from concept or prototype stage to avoid later design changes.
Sample Trials: Provide trial batches for on-machine testing and collect data for optimization.
Continuous Improvement: Adjust design details based on field feedback to enhance life and reliability.
With close technical cooperation, we aim to help customers shorten development cycles, reduce risks and keep a competitive cost-to-performance ratio in their markets.
Our Team:
Our Team
Behind TranzBrillix ’s product quality is a team of experienced engineers, technicians, quality controllers, and international sales specialists. We emphasize close collaboration between production, engineering, and customer support so that every project receives precise attention and timely communication.
Engineering Team – Skilled in linear motion design, material selection, tolerance analysis, and custom machining.
Manufacturing & Quality Control – Operators and inspectors with hands-on expertise in CNC machining, grinding, and precision measurement.
Global Sales & Support – Multilingual professionals familiar with international trade, technical documentation, delivery planning, and after-sales coordination
R&D & Continuous Improvement – Ongoing optimization of model compatibility, design details, and performance testing.
With clear roles and efficient collaboration, the TranzBrillix team delivers consistent quality, reliable service, and long-term customer trust.
History:
Company History
Founded in Nanjing, China,TranzBrillix has grown from a small machining workshop into a professional manufacturer and solution provider for linear motion systems. With years of experience in CNC machining, precision grinding, and assembly technology, the company expanded its product range from linear bearings to HIWIN-compatible linear guideways, ball screws, and multiple accessory components.
Key milestones in our development include:
Early Stage – Focused on precision machining and component production for domestic automation companies.
Expansion – Established full CNC machining lines, introduced advanced grinding processes, and built a complete inspection system.
Diversification – Launched HG/EG/RG/MG series linear guides to support global OEMs and system integrators.
International Growth – Became authorized distributor for TBI, ABBA, and REXROTH, enabling a dual-track supply model for worldwide clients.
Today, TranzBrillix serves customers in Asia, Europe, North America, and South America, continuously improving product quality and strengthening its global presence.
Service:
TranzBrillix provides a complete range of linear motion solutions, supporting global customers in automation, CNC machinery, packaging equipment, medical devices, and industrial systems. Our services are built around precision engineering, fast delivery, and reliable product support, helping OEM manufacturers and engineering integrators source the right components with confidence.
Our service scope includes:
Linear Motion Component Supply – HIWIN-compatible linear guides, ball screws (C7–C3), linear bearings, ball splines, couplings, nut housings, and support units.
Customization & Engineering Support – Non-standard lengths, machining, special designs, and technical selection support for designers and engineers.
Dual-Track Supply System – Self-developed product lines and authorized brands (TBI, ABBA, REXROTH) to meet both cost-effective and premium application needs.
Fast Global Delivery – Efficient production planning and reliable worldwide logistics.
By combining strong manufacturing capability with professional service, TranzBrillix offers one-stop sourcing for linear motion components.
Factory Information
Market name:
North America,South America,Eastern Europe,Southeast Asia,Middle East,Africa
